AccuTrack/AccuSQL: How to Use the Reports Center

AccuTrack/AccuSQL: How to Use the Reports Center

Step 1:

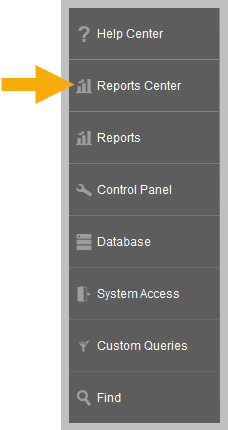

Click on the Reports Center console



Step 2:

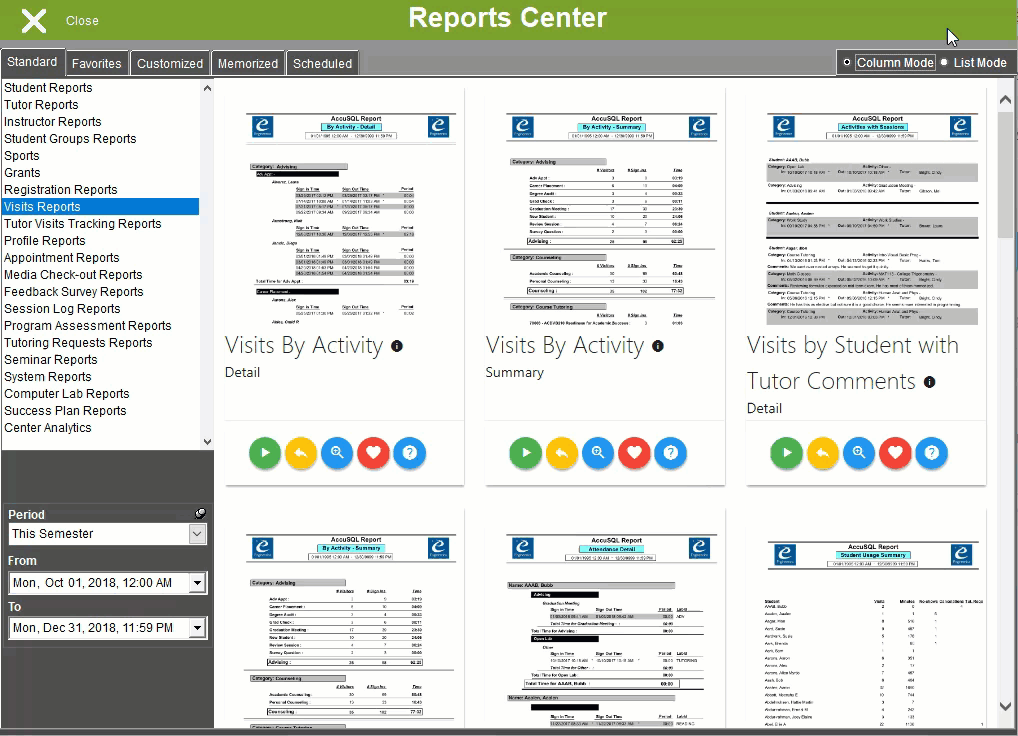

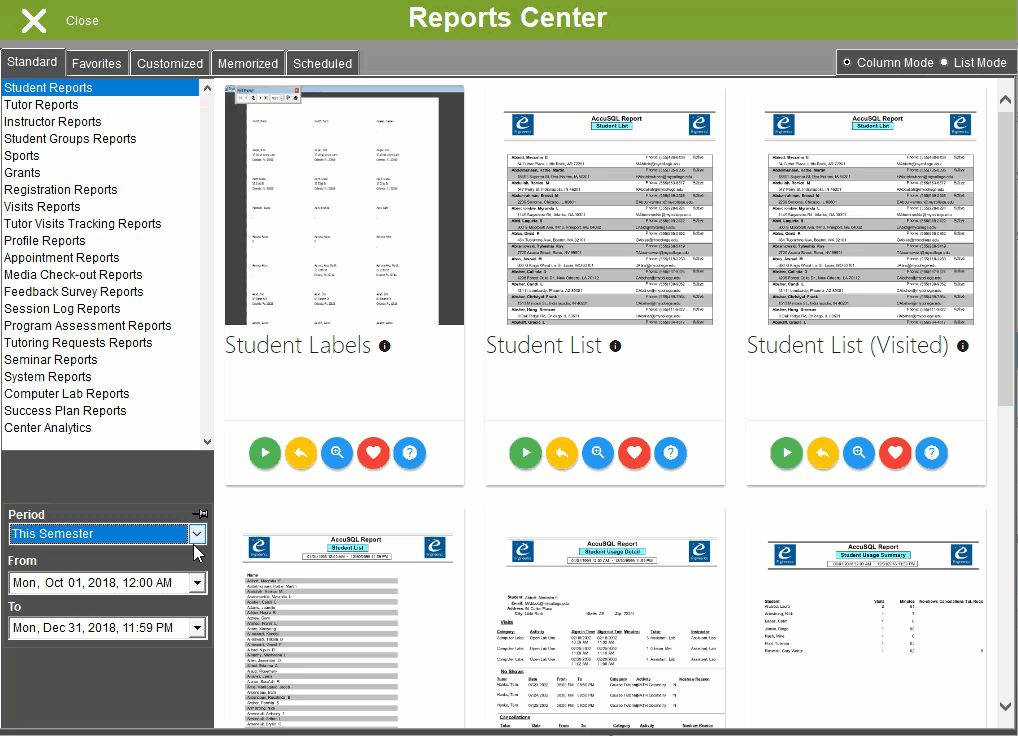

Select the Period in the lower left-hand corner. Click the thumbtack to lock down the selected Period
Select a Report category from the Standard tab in the upper left-hand corner



Step 3:
Hover over a report for a short description of the report Purpose


Step 4:
Change the view from Column Mode to List Mode using the radio button in the upper right-hand corner
Hover over a report in List Mode for details such as Purpose, Available Filters, Display Options, Grouped By, Order, and full Description



Step 5:

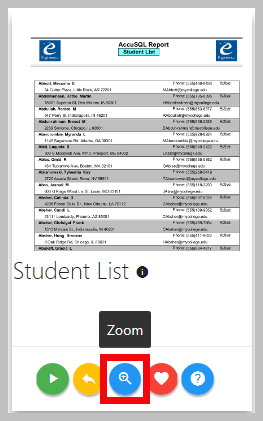

Choose a Report and Click on the Zoom button
The Zoom button is available in Column Mode view and List Mode view



Step 6:

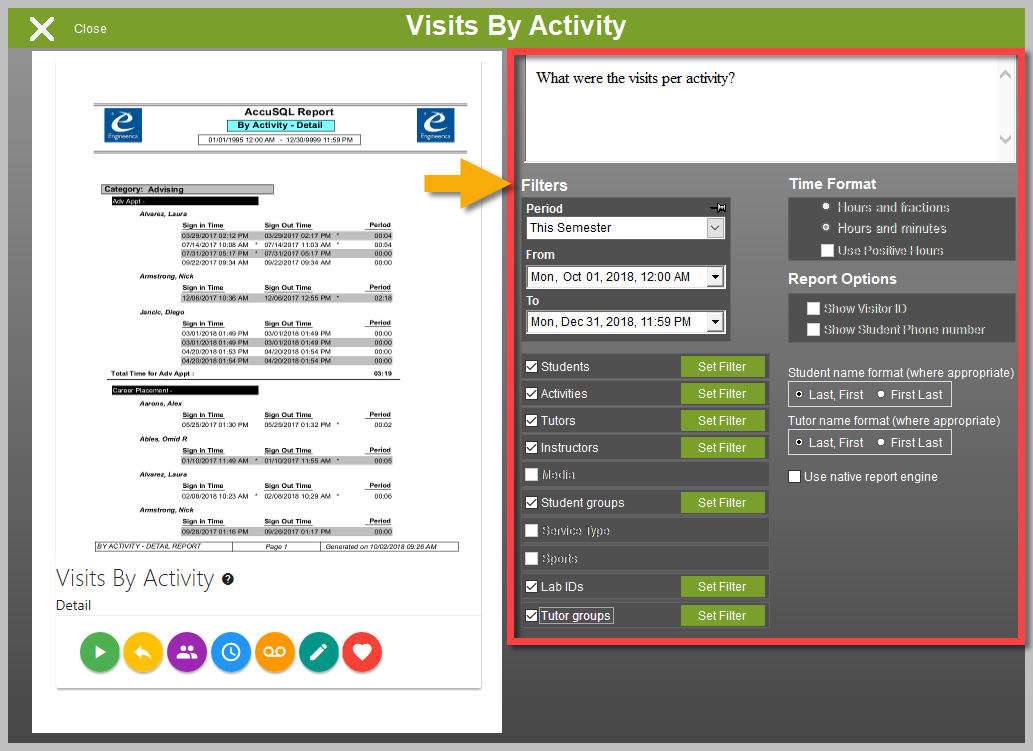

To the right-hand of this screen, you will see Filters, Time Format, and Report Options
Any Filters that cannot be applied will be grayed out



Step 7:

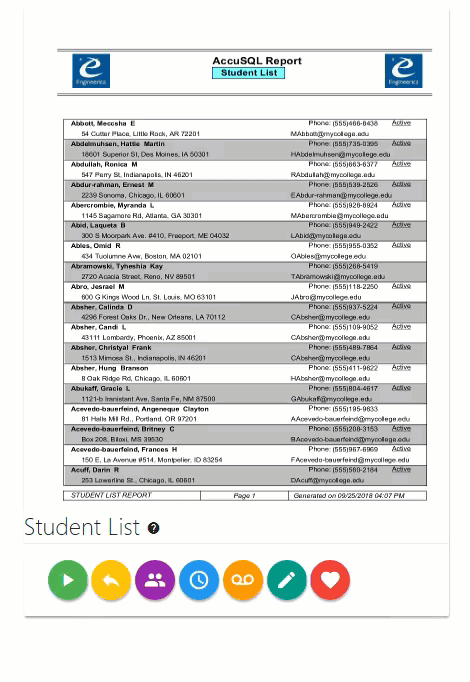

To the left-hand of the screen you will see an image of the report you Zoomed in on
Click on the image of the report to see the Purpose, Available Filters, Display Options, Grouped By, Order, and Description
Click X to exit this view

Step 8:

                                                                                Click on the descriptions below to see how each button works
